KomyMirror for Corridors

Wide View with Flat Surface! Just Look Straight Ahead!

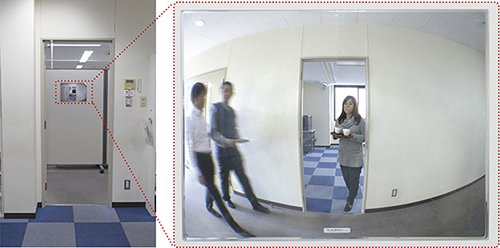

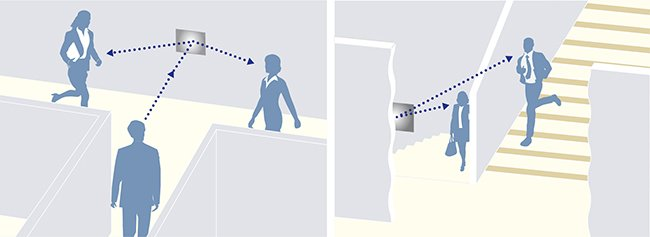

Komy has newly developed a mirror for use in indoor corridors. People passing through the corridor can see into blind spots while simply naturally looking straight ahead, facilitating safe passage.

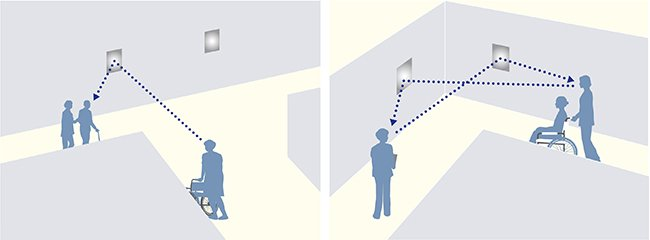

KomyMirror is sold as a ready-to-install product with self-adhesive tape on the back. Just install it at eye level in an appropriate place in a corridor. In hospitals, office, and any facilities, KomyMirror is useful in all corridors.

Both Directions Type(Left and Right Views)

Specification

Please swipe left.
Part No.Installation MethodSizeWeightThicknessCurvature RadiusInstallation Manual
FT22-ENStrong Adhesive Tape
(already placed on the back)
W220mm x H165mm
(W8.7″ x H6.5″)
170g
(0.37lb)
4.1mm
(0.2″)
about 180mm
(7.1″)
FT34-ENW340mm x H240mm
(W13.4″ x H9.4″)
350g
(0.77lb)
about 280mm
( 11″)
FT46-ENW460mm x H330mm
(W18.1″ x H13″)
680g
(1.5lb)
about 400mm
( 15.7″)
FT65-ENW650mm x H485mm
(W25.6″ x H19.1″)
1,800g
(3.97lb)
about 600mm
( 23.6″)
FT22M-ENMagnet
(already placed on the back)
W220mm x H165mm
(W8.7″ x H6.5″)
200g
(0.44lb)
3.9mm
(0.2″)
about 180mm
( 7.1″)
FT34M-ENW340mm x H240mm
(W13.4″ x H9.4″)
410g
(0.9lb)
about 280mm
( 11″)
FT46M-ENW460mm x H330mm
(W18.1″ x H13″)
800g
(1.76lb)
about 400mm
( 15.7″)

Material : Plastic

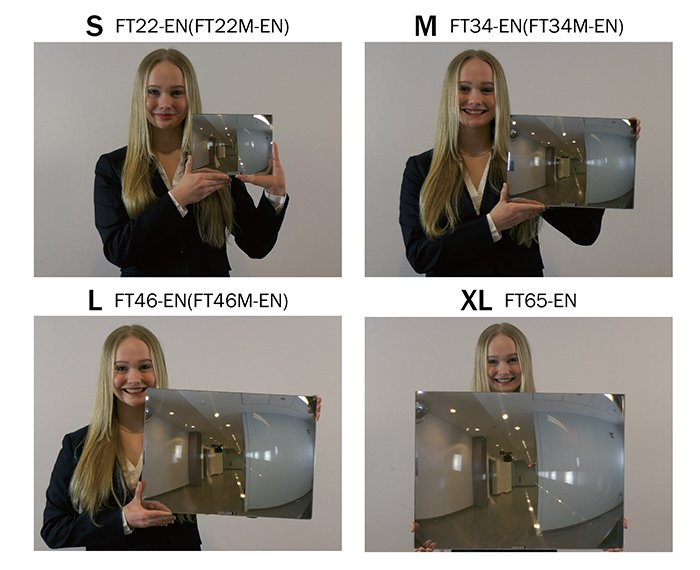

Size of Image in Mirror

The larger the curvature radius, the larger the mirror image you can see.

Single Direction Type(Left or Right View)

Specification

Please swipe left.
Part No.Installation MethodSizeWeightThicknessCurvature RadiusInstalltion Manual
FT23A-ENStrong Adhesive Tape
(already placed on the back)
W230mm x H330mm
(W9.1″ x H13″)
340g
(0.75lb)
4.1mm
(0.2″)
about 400mm
( 15.7″)
FT33A-ENW325mm x H485mm
(W12.8″ x H19.1″)
900g
(1.98lb)
about 600mm
( 23.6″)
FT23AM-ENMagnet
(already placed on the back)
W230mm x H330mm
(W9.1″ x H13″)
440g
(0.97lb)
3.9mm
(0.2″)
about 400mm
( 15.7″)
FT33AM-ENW325mm x H485mm
(W12.8″ x H19.1″)
1,000g
(2.2lb)
about 600mm
( 23.6″)

Material : Plastic

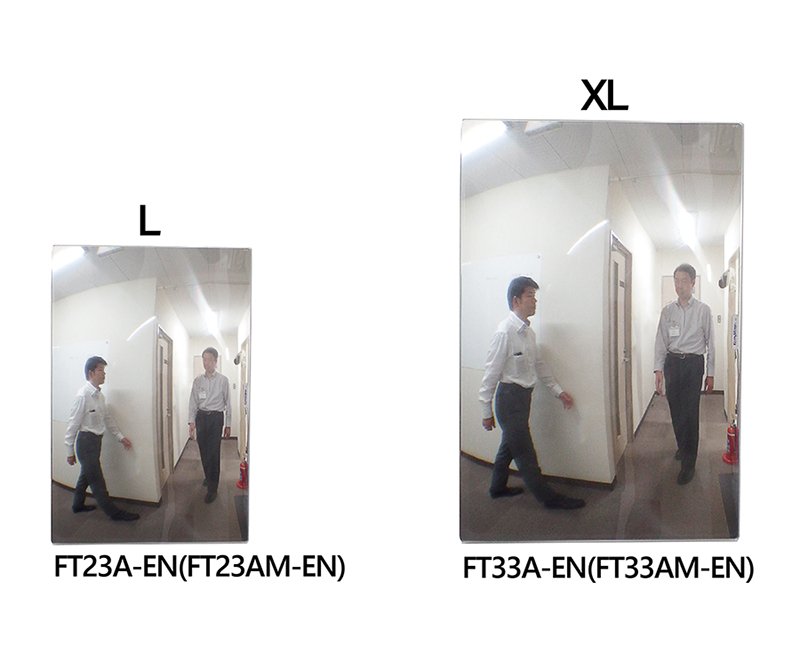

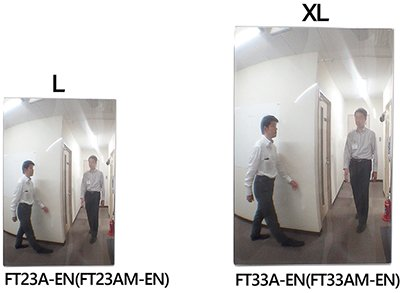

Size of Image in Mirror

The larger the curvature radius, the larger the mirror image you can see.
